WSDL PLANT3D Standard Configuration

Piping Specifications

The following Pipe Classifications (Pipe Specs) are delivered with WSDL’s standard configuration

Spec RATING SERVICE TEMP RATING STANDARD Description
A CL150 SWEET HYDROCARBON PROCESS REGULAR TEMP ANSI ANSI CL150 SWEET HYDROCARBON PROCESS REGULAR TEMP
AL CL150 SWEET HYDROCARBON PROCESS LOW TEMP ANSI ANSI CL150 SWEET HYDROCARBON PROCESS LOW TEMP
AS CL150 SOUR HYDROCARBON PROCESS REGULAR TEMP ANSI ANSI CL150 SOUR HYDROCARBON PROCESS REGULAR TEMP
ASL CL150 SOUR HYDROCARBON PROCESS LOW TEMP ANSI ANSI CL150 SOUR HYDROCARBON PROCESS LOW TEMP
B CL300 SWEET HYDROCARBON PROCESS REGULAR TEMP ANSI ANSI CL300 SWEET HYDROCARBON PROCESS REGULAR TEMP
BL CL300 SWEET HYDROCARBON PROCESS LOW TEMP ANSI ANSI CL300 SWEET HYDROCARBON PROCESS LOW TEMP
BS CL300 SOUR HYDROCARBON PROCESS REGULAR TEMP ANSI ANSI CL300 SOUR HYDROCARBON PROCESS REGULAR TEMP
BSL CL300 SOUR HYDROCARBON PROCESS LOW TEMP ANSI ANSI CL300 SOUR HYDROCARBON PROCESS LOW TEMP
C CL600 SWEET HYDROCARBON PROCESS REGULAR TEMP ANSI ANSI CL600 SWEET HYDROCARBON PROCESS REGULAR TEMP
CL CL600 SWEET HYDROCARBON PROCESS LOW TEMP ANSI ANSI CL600 SWEET HYDROCARBON PROCESS LOW TEMP
CS CL600 SOUR HYDROCARBON PROCESS REGULAR TEMP ANSI ANSI CL600 SOUR HYDROCARBON PROCESS REGULAR TEMP
CSL CL600 SOUR HYDROCARBON PROCESS LOW TEMP ANSI ANSI CL600 SOUR HYDROCARBON PROCESS LOW TEMP
CSZ CL600 SOUR HYDROCARBON PROCESS REGULAR TEMP CSA CSA CL600 SOUR HYDROCARBON PROCESS REGULAR TEMP
CZ CL600 SWEET HYDROCARBON PROCESS REGULAR TEMP CSA CSA CL600 SWEET HYDROCARBON PROCESS REGULAR TEMP
D CL900 SWEET HYDROCARBON PROCESS REGULAR TEMP ANSI ANSI CL900 SWEET HYDROCARBON PROCESS REGULAR TEMP
DL CL900 SWEET HYDROCARBON PROCESS LOW TEMP ANSI ANSI CL900 SWEET HYDROCARBON PROCESS LOW TEMP
DS CL900 SOUR HYDROCARBON PROCESS REGULAR TEMP ANSI ANSI CL900 SOUR HYDROCARBON PROCESS REGULAR TEMP
DSL CL900 SOUR HYDROCARBON PROCESS LOW TEMP ANSI ANSI CL900 SOUR HYDROCARBON PROCESS LOW TEMP
E CL1500 SWEET HYDROCARBON PROCESS REGULAR TEMP ANSI ANSI CL1500 SWEET HYDROCARBON PROCESS REGULAR TEMP
EL CL1500 SWEET HYDROCARBON PROCESS LOW TEMP ANSI ANSI CL1500 SWEET HYDROCARBON PROCESS LOW TEMP

Source Data Table: W:\WSDL\EDS\04-Standards\WSDL\PipeSpecs\01-WSDL_PipeClass-RawData.xlsx

Source P3D: \\Wsdlnas1\data\WSDL\EDS\00-ProjectTemplates\WSDL-MasterP3D2018\Spec Sheets

Standard Pipe Supports

The following supports are delivered with WSDL’s standard configuration

Sheet Number Sheet Title
BS-01 BASE SUPPORT (2-30 NPS)
BS-02 WITH GUIDE (2-30 NPS)
BS-03 WITH ANCHOR (2-30 NPS)
BS-04 ADJUSTABLE (2-12 NPS)
CS-01 (2-8 NPS)
CS-02 (10-24 NPS)
CS-03 EXTRA LARGE (6-24 NPS)
CS-04 (24-42 NPS)
DA-01 BARE PIPE (4 NPS & SMALLER)
DA-02 BARE PIPE (6-24 NPS)
DA-03 SHOES (10 NPS & SMALLER)
DA-04 SHOES (12-24 NPS)
DA-05 CLAMPED (2-16 NPS)
G-01 BARE PIPE (2-24 NPS)
G-02 BARE PIPE (2-42 NPS)
G-03 SHOES (2-24 NPS)
G-04 HOLD DOWN FOR SHOE
G-05 HOLD DOWN (HD) FOR SHOE
S-01 (2-8 NPS)
S-02 (10-24 NPS)
S-03 XL (6-24 NPS)
UB-01 (1-24 NPS)

BASE SUPPORTS

PIP-STD-BS1 BS1 BASE SUPPORT 2-30 NPS
PIP-STD-BS2 BS2A BASE SUPPORT WITH GUIDE 2-30 NPS (WELDED BASE)
PIP-STD-BS2 BS2B BASE SUPPORT WITH GUIDE 2-30 NPS (BOLTED BASE)
PIP-STD-BS3 BS3A BASE SUPPORT WITH ANCHOR 2-30 NPS (WELDED BASE)
PIP-STD-BS3 BS3B BASE SUPPORT WITH ANCHOR 2-30 NPS (BOLTED BASE)
PIP-STD-BS4 BS4 BASE SUPPORT ADJUSTABLE 2-12 NPS

DIRECTIONAL ANCHORS

PIP-STD-DA1 DA1 DIRECTIONAL ANCHOR FOR BARE PIPE 4 NPS & SMALLER
PIP-STD-DA2 DA2 DIRECTIONAL ANCHOR FOR BARE PIPE 6-24 NPS
PIP-STD-DA3 DA3 DIRECTIONAL ANCHOR FOR PIPE SHOES 10 NPS & SMALLER
PIP-STD-DA4 DA4 DIRECTIONAL ANCHOR FOR PIPE SHOES 12-36 NPS
PIP-STD-DA5 DA5 DIRECTIONAL ANCHOR CLAMPED 2-16 NPS

GUIDES

PIP-STD-G01 G1 GUIDES FOR BARE PIPE 2-24 NPS
PIP-STD-G02 G2 GUIDES FOR BARE PIPE 2-42 NPS
PIP-STD-G03 G3 GUIDES FOR PIPE SHOE 12-24 NPS
PIP-STD-G04 G4A GUIDES – HOLD DOWN FOR PIPE SHOE (12.7 THK)
PIP-STD-G04 G4B GUIDES – HOLD DOWN FOR PIPE SHOE (19 THK)
PIP-STD-G05 G5 GUIDES – HOLD DOWN FOR PIPE SHOE (HEAVY DUTY)

SHOES

PIP-STD-S01 S1A3 SHOES 2-8 NPS (100H x 300L)
PIP-STD-S01 S1A4 SHOES 2-8 NPS (100H x 450L)
PIP-STD-S01 S1B3 SHOES 2-8 NPS (150H x 300L)
PIP-STD-S01 S1B4 SHOES 2-8 NPS (150H x 450L)
PIP-STD-S02 S2A3 SHOES 10-24 NPS (100H x 300L)
PIP-STD-S02 S2A4 SHOES 10-24 NPS (100H x 450L)
PIP-STD-S02 S2A6 SHOES 10-24 NPS (100H x 600L)
PIP-STD-S02 S2B3 SHOES 10-24 NPS (150H x 300L)
PIP-STD-S02 S2B4 SHOES 10-24 NPS (150H x 450L)
PIP-STD-S02 S2B6 SHOES 10-24 NPS (150H x 600L)
PIP-STD-S03 S3A6 SHOES 6-24 NPS (100H x 600L)
PIP-STD-S03 S3A7 SHOES 6-24 NPS (100H x 750L)
PIP-STD-S03 S3A9 SHOES 6-24 NPS (100H x 900L)
PIP-STD-S03 S3B6 SHOES 6-24 NPS (150H x 600L)
PIP-STD-S03 S3B7 SHOES 6-24 NPS (150H x 750L)
PIP-STD-S03 S3B9 SHOES 6-24 NPS (150H x 900L)
PIP-STD-S04 S4A6 SHOES 24-36 NPS (100H x 600L)
PIP-STD-S04 S4A7 SHOES 24-36 NPS (100H x 750L)
PIP-STD-S04 S4A9 SHOES 24-36 NPS (100H x 900L)
PIP-STD-S04 S4B6 SHOES 24-36 NPS (150H x 600L)
PIP-STD-S04 S4B7 SHOES 24-36 NPS (150H x 750L)
PIP-STD-S04 S4B9 SHOES 24-36 NPS (150H x 900L)

CLAMPED SHOES

PIP-STD-CS1 CS1A3 CLAMPED SHOE 2-8 NPS (100H x 300L)
PIP-STD-CS1 CS1A4 CLAMPED SHOE 2-8 NPS (100H x 450L)
PIP-STD-CS1 CS1B3 CLAMPED SHOE 2-8 NPS (150H x 300L)
PIP-STD-CS1 CS1B4 CLAMPED SHOE 2-8 NPS (150H x 450L)
PIP-STD-CS2 CS2A3 CLAMPED SHOE 10-24 NPS (100H x 300L)
PIP-STD-CS2 CS2A4 CLAMPED SHOE 10-24 NPS (100H x 450L)
PIP-STD-CS2 CS2B3 CLAMPED SHOE 10-24 NPS (150H x 300L)
PIP-STD-CS2 CS2B4 CLAMPED SHOE 10-24 NPS (150H x 450L)
PIP-STD-CS3 CS3A6 CLAMPED SHOE XL 6-24 NPS (100H x 600L)
PIP-STD-CS3 CS3A7 CLAMPED SHOE XL 6-24 NPS (100H x 750L)
PIP-STD-CS3 CS3A9 CLAMPED SHOE XL 6-24 NPS (100H x 900L)
PIP-STD-CS3 CS3B6 CLAMPED SHOE XL 6-24 NPS (150H x 600L)
PIP-STD-CS3 CS3B7 CLAMPED SHOE XL 6-24 NPS (150H x 750L)
PIP-STD-CS3 CS3B9 CLAMPED SHOE XL 6-24 NPS (150H x 900L)
PIP-STD-CS4 CS4A6 CLAMPED SHOE 24-36 NPS (100H x 600L)
PIP-STD-CS4 CS4A7 CLAMPED SHOE 24-36 NPS (100H x 750L)
PIP-STD-CS4 CS4A9 CLAMPED SHOE 24-36 NPS (100H x 900L)
PIP-STD-CS4 CS4B6 CLAMPED SHOE 24-36 NPS (150H x 600L)
PIP-STD-CS4 CS4B7 CLAMPED SHOE 24-36 NPS (150H x 750L)
PIP-STD-CS4 CS4B9 CLAMPED SHOE 24-36 NPS (150H x 900L)

U-BOLT

PIP-STD-UB1 UB1 U-BOLT GUIDE 1-24 NPS

Admin Notes

Source Data Table: W:\WSDL\EDS\04-Standards\WSDL\PipeSupports\WSD PIPE SUPPORTS.dst (AutoCAD Sheet Set)

Source P3D: \\Wsdlnas1\data\WSDL\EDS\00-ProjectTemplates\WSDL-MasterP3D2018\PipeSupportsSpec.pspx

P&ID PALETTE CONFIGURATION

The following P&ID Palettes are delivered with WSDL’s standard Configuration.  All items have been redrawn to match a snap point of 1, this increases drafting efficiency and standardization

EQUIPMENT

LINES

VALVES

FITTINGS

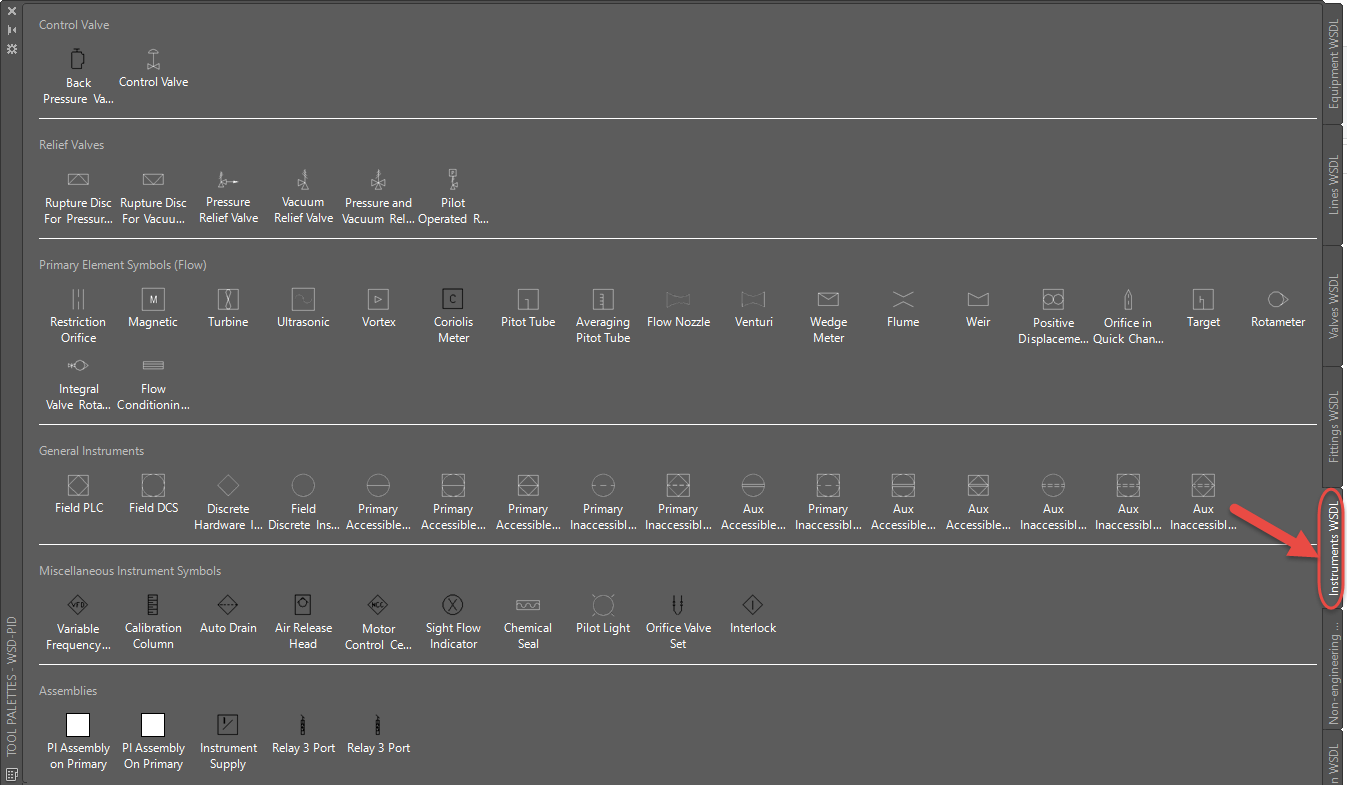

INSTRUMENTS

NON ENGINEERING

Admin Notes

Master Palettes: W:\WSDL\EDS\03-Admin\Autodesk\AutoCAD_Plant3D\2018\Toolpalette\WSDL\Masters

Palette Group: WSD-PID
